Various Wiring Diagrams


"Without counsel purposes are disappointed:
but in the multitude of counsellors they are established."
Proverbs 15:22

Here are a multitude of Motorcycle Wiring Counsellors, from around the world, for you to study. Learn and Enjoy!

Click the Picture for the Full Size.
Victory 2003-05, Vegas-KP
USA
Click the Picture for the Full Size.
Vor 450-530
2004
Italy
Click the Picture for the Full Size.
Vor 450-530 Codes Key


Click the Picture for the Full Size.
Honda CB900F 2001
Japan
Click the Picture for the Full Size.
Scott 1930-1968
England
Click the Picture for the Full Size.

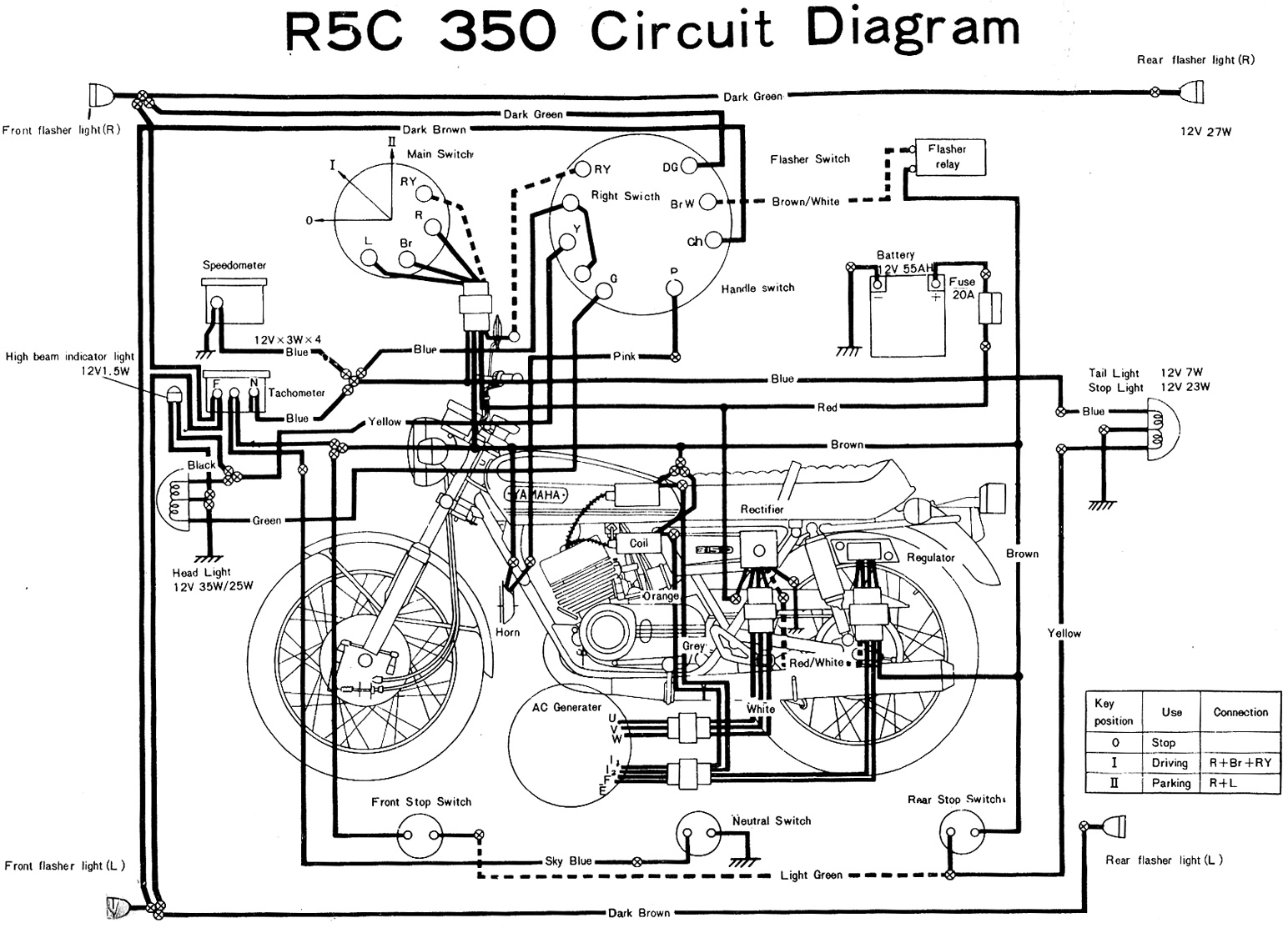

Yamaha-R5C-350cc
1972
Japan


Click the Picture for the Full Size.
Honda VT 750cc ACE
1998-2000
Japan
Click the Picture for the Full Size.
Honda CBRFF
2008
Japan
Click the Picture for the Full Size.
Honda CA95-CA92
1959-1966
Japan


Click the Picture for the Full Size.
CB400F 1989
Japan
Click the Picture for the Full Size.
Kawasaki GA1-A 1972
Japan
Click the Picture for the Full Size.
Suzuki GSX-R750
1991-1992
Japan


Click the Picture for the Full Size.
Harley Davidson Sportster
1965
USA
Click the Picture for the Full Size.
Harley Davidson MT350E
Made for NATO, in the USA,
by Harley Davidson
1995-96 ???
Click the Picture for the Full Size.
Harley Davidson MT350 Key


Click the Picture for the Full Size.
GasGas 200-300cc
2005
Spain
Click the Picture for the Full Size.
Ducati 350cc Scrambler
1968
Italy
Click the Picture for the Full Size.
Lavarda 1000cc
3 Cylinder
1976
Italy


Click the Picture for the Full Size.
Hyosung Comet 250cc
South Korean
Click the Picture for the Full Size.
Loncin LX200
2005
China
Click the Picture for the Full Size.
DKW NZ250-500
1953, Germany


Click the Picture for the Full Size.
Norton 961 Commando
2000-2006
England
Click the Picture for the Full Size.
Norton Commando
1967-1977-up, 750-850cc
Positive Ground
England
Click the Picture for the Full Size.
Norton Atlas 1964
Positive Ground
England


Click the Picture for the Full Size.
Daelim 50cc
2006
Korea
Click the Picture for the Full Size.
BMW R60/6-R90/6
Flat Twin
1974, Germany
Click the Picture for the Full Size.
BMW R90 1974
Flat Twin
Germany


Click the Picture for the Full Size.
Puch Magnum MK2
1980-81
Austria
Click the Picture for the Full Size.
Puch Maxi
1980-81
Austria
Click the Picture for the Full Size. Royal Enfield Bullet 350cc
1995?
England/India?


Click the Picture for the Full Size.
Royal Enfield 750cc
1969, England
Click the Picture for the Full Size.
Nimbus 4-Cylinder
pre-#7500
750cc, Denmark
Click the Picture for the Full Size.
Nimbus 4-Cylinder
750cc 1934-1960
Denmark


Click the Picture for the Full Size.
1964 Marusho 500cc
Flat Twin
The Japanese BMW
Japan
Click the Picture for the Full Size.
Chang Jiang 750cc, 2006?
Flat Twin
The Chinese BMW
China
Click the Picture for the Full Size.
Ural 750er, 2005
Flat Twin
The Russian BMW
Russia


Click the Picture for the Full Size.
NSU 250OSB
1955, Germany
Click the Picture for the Full Size.
NSU Super Max
1956, Germany
Click the Picture for the Full Size.
VT750C Magna
1994-2000
Japan


Click the Picture for the Full Size.
Harley Davidson M-125
Rapido, 1972, USA
Click the Picture for the Full Size.
Harley Davidson M-65
Leggero, 1972, USA
Click the Picture for the Full Size.
Harley Davidson SX250
1976, USA


Click the Picture for the Full Size.
Lucas 2MC Capacitor Ignition
12 Volt, Positive Ground
1970s
England
Click the Picture for the Full Size.
Lucas 6 Volt Positive Ground
1960s
England
Click the Picture for the Full Size.
Lucas 12 Volt, Positive Ground
Three Cylinder
1970s
England


Click the Picture for the Full Size.
Bridgestone 175 DT
1967
Japan
Click the Picture for the Full Size.
Bridgestone 350 GTR GTO
1967-1971
Japan
Click the Picture for the Full Size.
Bultaco 5-Speed
Around 1967
Spain


Click the Picture for the Full Size.
CCM XF650Y
2000
England
Click the Picture for the Full Size.
BMW R75/5
1972 Flat Twin
Germany
Click the Picture for the Full Size.
Harley Davidson Electra Glide
1968-1969
USA


Click the Picture for the Full Size.
Harley Davidson Knucklehead
61&74 Cubic Inch OHV
1947, USA
Click the Picture for the Full Size.
Suzuki RMZ450
2005-2007
Japan
Click the Picture for the Full Size.
Honda CB250 & 305 Twin
1966
Japan


Click the Picture for the Full Size.
MZ 250
1969
Germany
Click the Picture for the Full Size.
Honda C-110, 50cc
1963
Japan
Click the Picture for the Full Size.
Honda C-102, 50cc
1964
Japan


Click the Picture for the Full Size.
Indian Military 340
1940
USA
Click the Picture for the Full Size.
Zundapp 100-125cc
1973
Germany
Click the Picture for the Full Size.
Garelli 150
1969
Italy


Click the Picture for the Full Size.
Kawasaki W-1 650cc
Pushrod Twin
1966
Japan
Click the Picture for the Full Size.
Honda CT-90
1969
Japan
Click the Picture for the Full Size.
Suzuki T500cc
Two Stroke Twin
1968
Japan
