Japanese Carbs

Here are some expolded views of Japanese Carburetors.



  1. Keihin-Honda CT90

  2. Keihin-Honda 350 Twin CV Carb

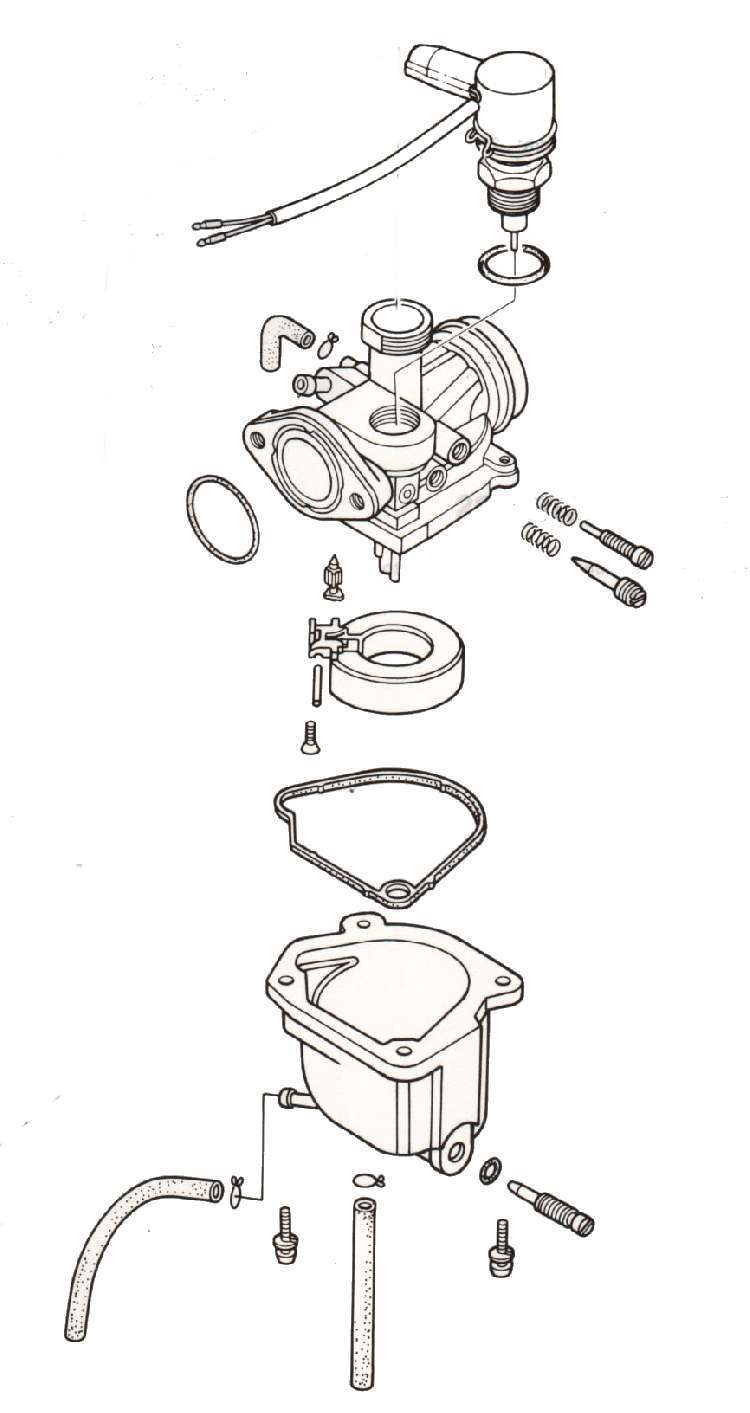

  3. Keihin-Honda Aero 50cc

  4. Keihin-Honda SL350

  5. Keihin-Honda CB500T

  6. Keihin-Honda CB72 & 77

  7. Keihin-Honda CBX 6cyl

  8. Keihin-Honda CT200

  9. Keihin-Honda CX500

  10. Keihin-Honda V45

  11. Keihin-Honda Express

  12. Keihin-Honda XR/XL250/500

  13. Keihin-Honda XR350/500r/XL600r

  14. Keihin-Honda Moped

  15. Keihin-Honda Type1

  16. Keihin-Honda Type2

  17. Keihin-Honda CT-90

  18. Keihin-350 Honda twin-CV Carb

  19. Keihin-Honda Aero Carb

  20. Mikuni-Suzuki 400

  21. Mikuni HS Carburetor

  22. Mikuni MD18 Carburetor

  23. Mikuni RS Carburetor

  24. Mikuni TM Carburetor

  25. Mikuni TMX Carburetor

  26. Mikuni VB Spigot Carbuetor

  27. Mikuni VM

  28. Mikuni VM17 Carburetor

  29. Mikuni-Yamaha XS100

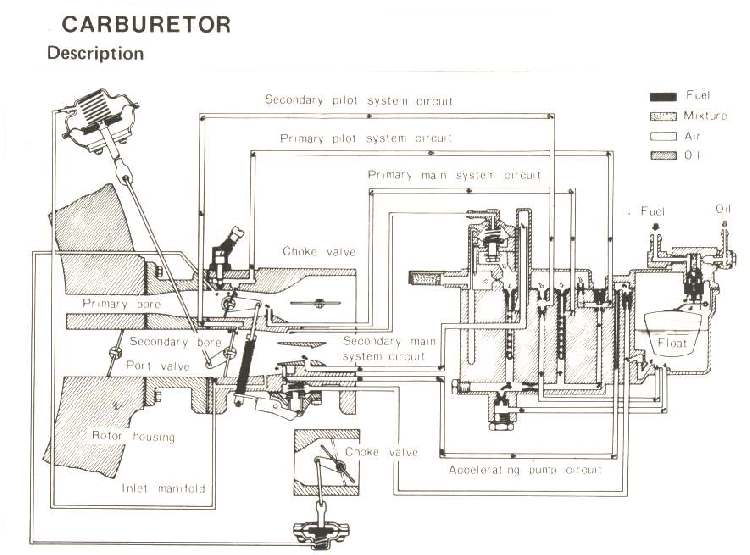

  30. Suzuki RE5

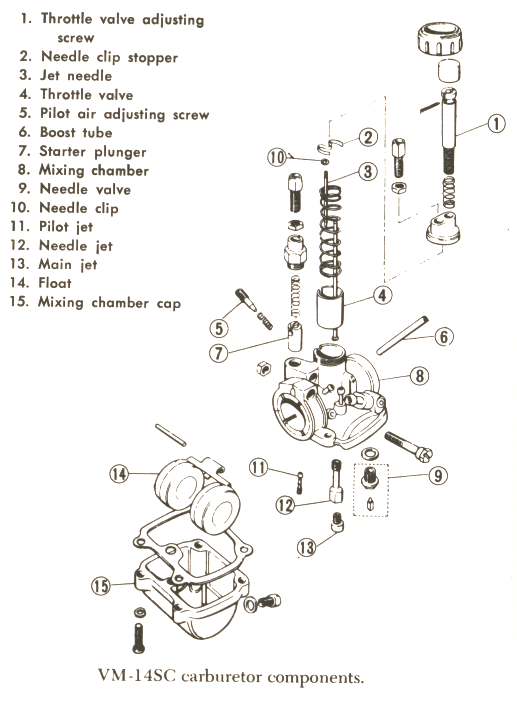

  31. VM14SC-Early Suzuki

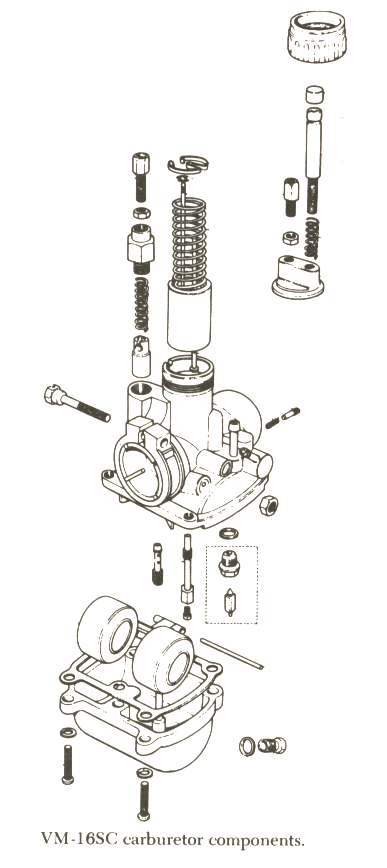

  32. VM16SC-Early Suzuki

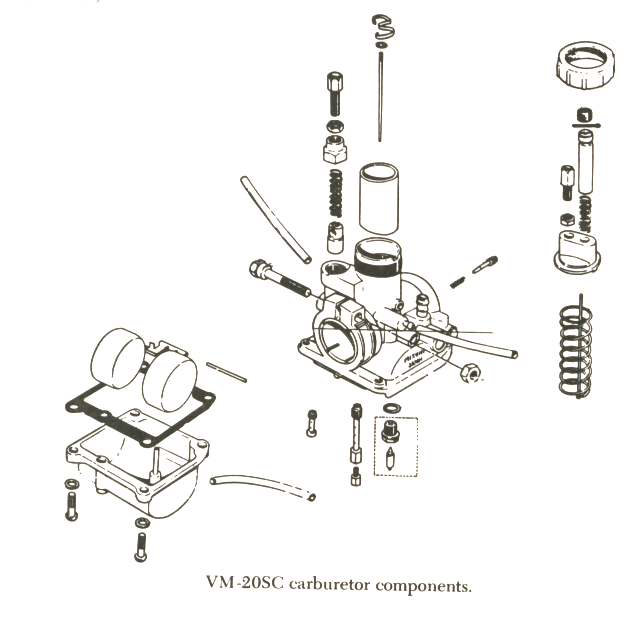

  33. VM20SC-Early Suzuki

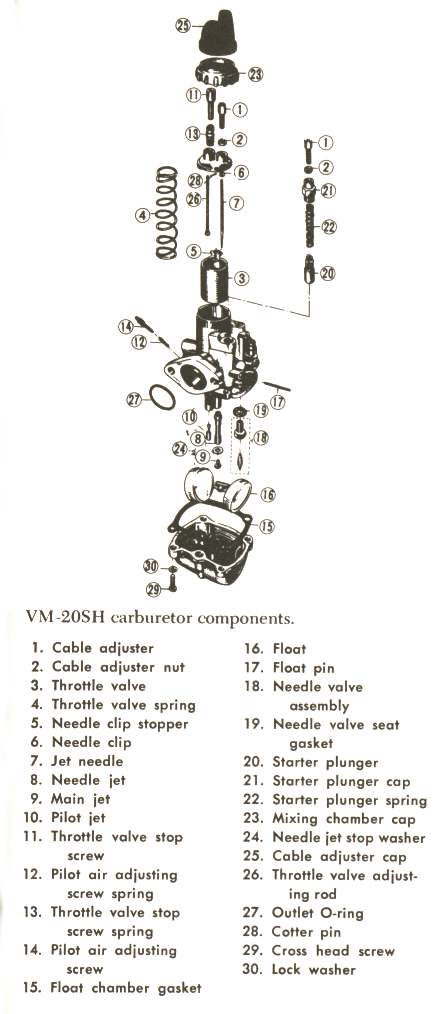

  34. VM20SH-Early Suzuki

  35. VM24SH-Early Suzuki

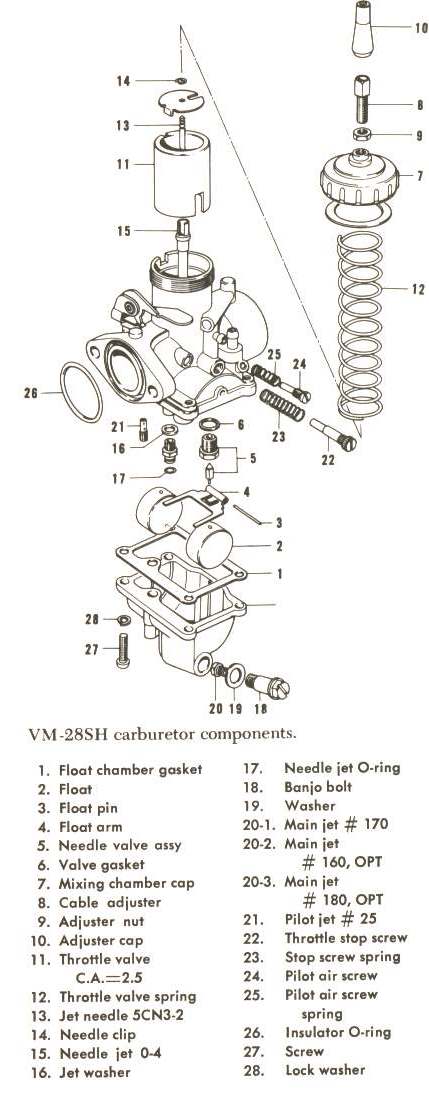

  36. VM28SH-Early Suzuki

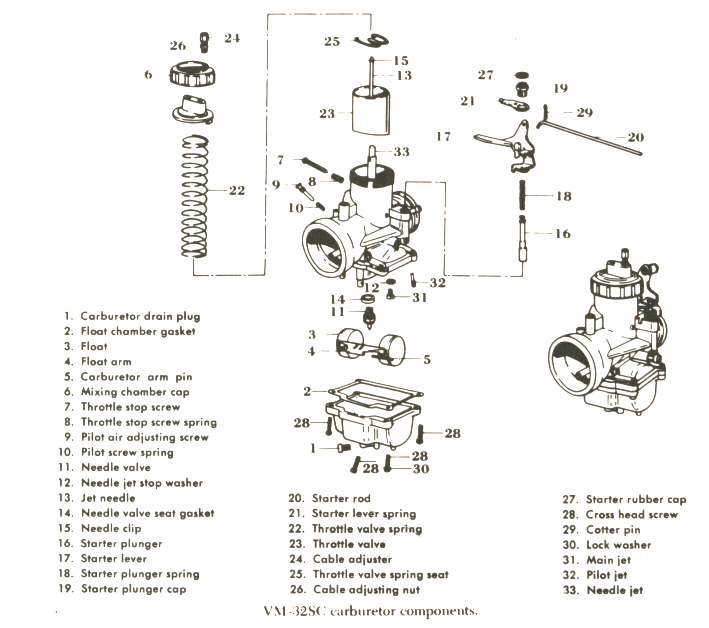

  37. VM32SC-Suzuki TS400

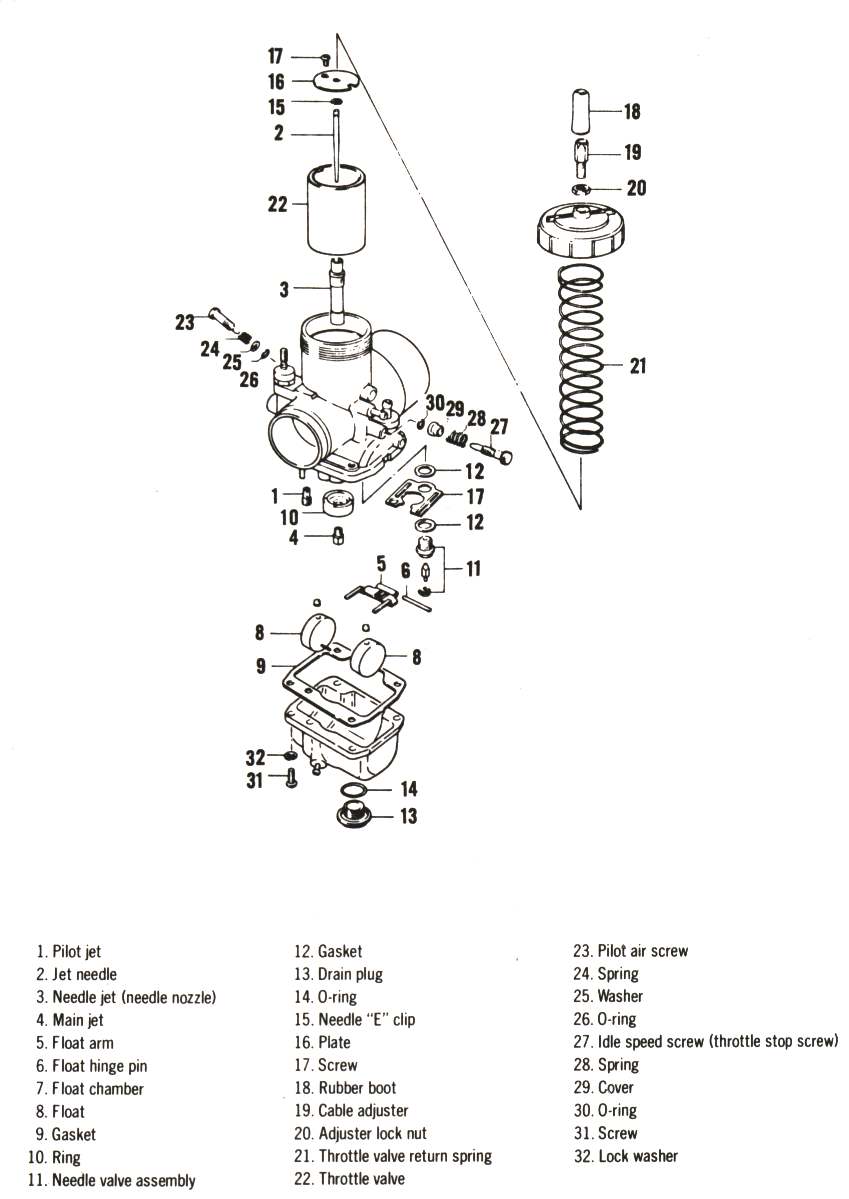

  38. VM32SS Suzuki PE series Carb

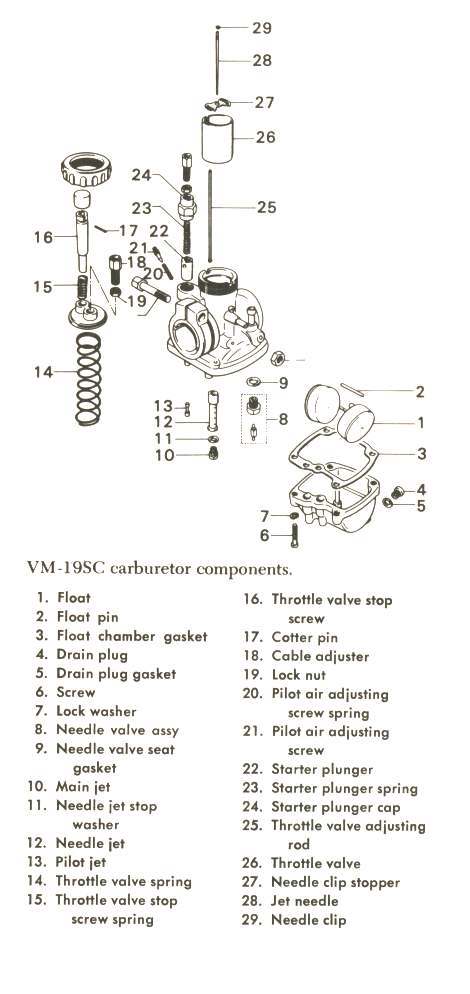

  39. VM19SC-Early Suzuki

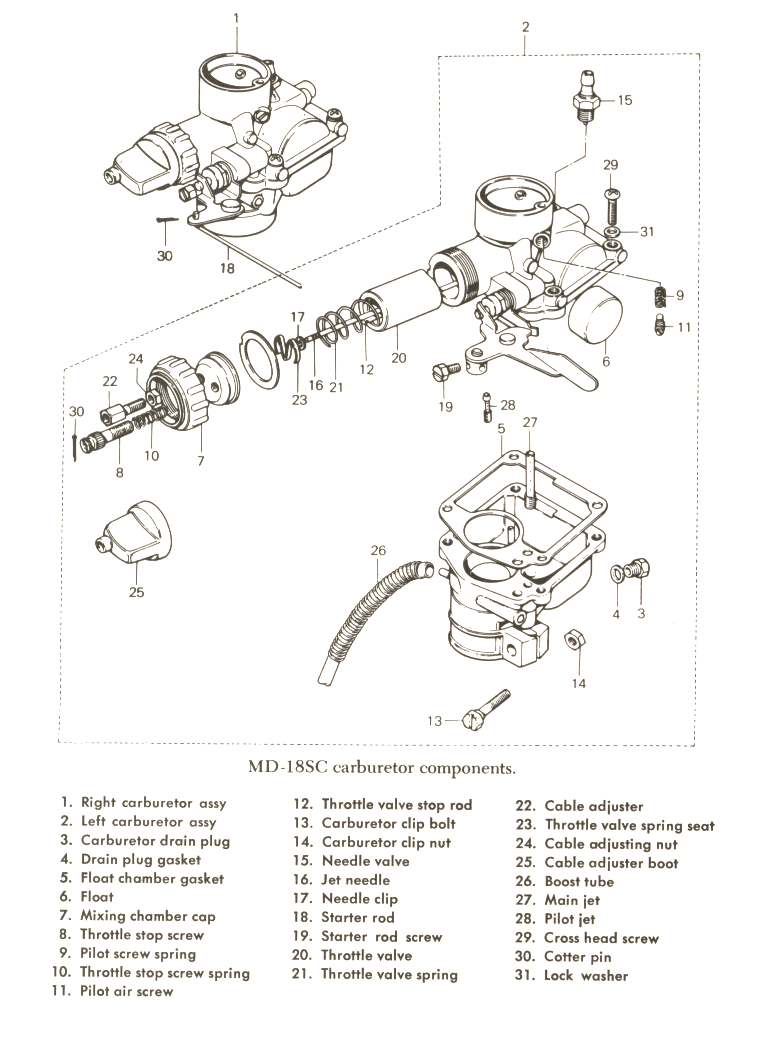

  40. MD18SC-Early Suzuki (125 Twin ?)
